rudog#1
- rudog
- Conventioneer
- Posts: 257
- Joined: Tue Oct 25, 2011 2:03 pm
- SELF INTRODUCTION: Jack of all. Master of none. Worked in a machine shop since I was 8. Desgined embedded computers for a few years. Done lots in between. If there's anything I've learned with certainty, "Anyone who looks like they know what they're doing is putting on an act."
- Location: Texoma
Re: rudog#1
Thanx, guys. I have a skill set with machinery, but all I know about tube I learned from yous guys.
-
- NewB
- Posts: 2
- Joined: Sun Jan 29, 2012 10:10 am
- SELF INTRODUCTION: I'm from the netherlands, 31 years old, a passion for custom build bike's.
I have build one bike my self, a late shovel style bobber.
i want to build a new bike, a fat tank low longbike.
ik like to share my ideas and pick up some.
i use to be a member of this forum but for some reason i can not log in annymore so i re-do my registration. - Location: Netherlands
Re: rudog#1
real cool frame design
- rudog
- Conventioneer
- Posts: 257
- Joined: Tue Oct 25, 2011 2:03 pm
- SELF INTRODUCTION: Jack of all. Master of none. Worked in a machine shop since I was 8. Desgined embedded computers for a few years. Done lots in between. If there's anything I've learned with certainty, "Anyone who looks like they know what they're doing is putting on an act."
- Location: Texoma
Re: rudog#1
Thanx. I gotta finish it quick. I can't stop walking over and measuring something.
Next step is the post and backbone. I've moved the tank as far forward as I dare. That gives me about 40* rotation for the forks without hitting the tank with the upper yoke. I don't need it but it's nice to have.
I'm setting the rear axle location now. I'm having to sneek up on where the wishbones meet the backbone. I've got a particular leafspring mount in mind and it's not looking like it's gonna happen.
Next step is the post and backbone. I've moved the tank as far forward as I dare. That gives me about 40* rotation for the forks without hitting the tank with the upper yoke. I don't need it but it's nice to have.
I'm setting the rear axle location now. I'm having to sneek up on where the wishbones meet the backbone. I've got a particular leafspring mount in mind and it's not looking like it's gonna happen.
-
- Contributor
- Posts: 804
- Joined: Wed Oct 26, 2011 10:43 pm
- SELF INTRODUCTION: I was on the last board as bonustoolkit. I have changed that to my given name.
I started a project build there " File and Fit." I paln to continue that when I go back home in Dec. 2011. I first joined the board when Gary W had it in the year 2005. That was the time I really gained an interest in building chops. I have a long way to go, compared to some here.
Re: rudog#1

Are you using these measurements as a guideline?
- rudog
- Conventioneer
- Posts: 257
- Joined: Tue Oct 25, 2011 2:03 pm
- SELF INTRODUCTION: Jack of all. Master of none. Worked in a machine shop since I was 8. Desgined embedded computers for a few years. Done lots in between. If there's anything I've learned with certainty, "Anyone who looks like they know what they're doing is putting on an act."
- Location: Texoma
Re: rudog#1
For the most part I am, Hans. I've made alot of choices from the CR140-2 plans. They are all pretty much similar. I've bent the seat post like in my drawing. I plan to reverse bend it to pull the junction back closer to the head.
The bend in the backbone will be a little farther back than in my drawing, but still do-able. The problem with the leafer mount is that I've got it in my head to put the leaves between the wishbones and not on top. I'm thinking to do that I may need to bend the backbone twice.
The picture in my head is fuzzy, I can see a reciever welded on top of the wishbone intersection, and a perch welded above the seat post. When I design machines, I try not to use bolts for working strength...only to keep it together when you shake it.
With the reciever and perch my own body weight will hold it in place. The bolts are only for when I'm not in the seat. I'll have to take it slowly...one step at a time. If I can sharpen the picture in my head and make it a reality, it should be pretty trick and functional.
I'll post another pic when I get the wishbones sorted out. I still need to set my final wheelbase.
The bend in the backbone will be a little farther back than in my drawing, but still do-able. The problem with the leafer mount is that I've got it in my head to put the leaves between the wishbones and not on top. I'm thinking to do that I may need to bend the backbone twice.
The picture in my head is fuzzy, I can see a reciever welded on top of the wishbone intersection, and a perch welded above the seat post. When I design machines, I try not to use bolts for working strength...only to keep it together when you shake it.
With the reciever and perch my own body weight will hold it in place. The bolts are only for when I'm not in the seat. I'll have to take it slowly...one step at a time. If I can sharpen the picture in my head and make it a reality, it should be pretty trick and functional.
I'll post another pic when I get the wishbones sorted out. I still need to set my final wheelbase.
- yona
- Conventioneer
- Posts: 278
- Joined: Tue Oct 25, 2011 4:55 pm
- SELF INTRODUCTION: Automotive weldor and fabricator for 45 years, like to dip in to both pools............make hand-tooled leather covered seats and bags.................jack of all trades........................63 years old......live in Baja Georgia, on the coast...former military
- Location: Baja Georgia - St Johns River Inlet
- Contact:
Re: rudog#1
That is what i meant ....the oblique edges have more weld area than just round circles... ; )rudog wrote:That wasn't so bad. Tedious and time consuming, but it came out better than I thought.
I.D.G.A.F.H.T.D.I.A.O.C.C.
- yona
- Conventioneer
- Posts: 278
- Joined: Tue Oct 25, 2011 4:55 pm
- SELF INTRODUCTION: Automotive weldor and fabricator for 45 years, like to dip in to both pools............make hand-tooled leather covered seats and bags.................jack of all trades........................63 years old......live in Baja Georgia, on the coast...former military
- Location: Baja Georgia - St Johns River Inlet
- Contact:
Re: rudog#1

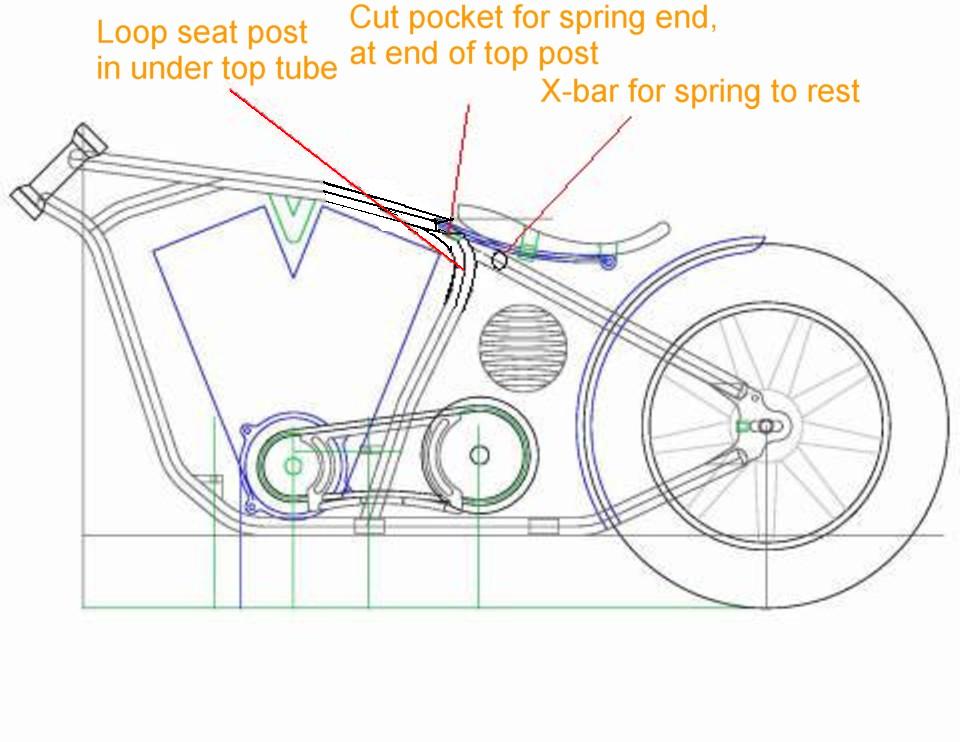

Tried to make a drawing in paint ...lol..... But since we have talked about this seat and I have worked on my version , these were my thoughts !rudog wrote:Thanx Hans. The tube from the backbone to the curve of the gooseneck will be added. With the angle that the tube will be welded to the neck, it should be plenty strong.
This is what it's planned to look like.
Bend the bar up close to the top mount or curve till it will over lap the seat mount area and cut a pocket in the end or shape to a
rectangle to fit the spring in and drop a bolt thru it ...add a x-bar for the spring to sit on and try to curve the seat post till it come up under the top bar to clear the mount area....this is how I thought of doing mine !
- Attachments
-
- frametmp%20Model%20(1.jpg (68.72 KiB) Viewed 16362 times
I.D.G.A.F.H.T.D.I.A.O.C.C.
- rudog
- Conventioneer
- Posts: 257
- Joined: Tue Oct 25, 2011 2:03 pm
- SELF INTRODUCTION: Jack of all. Master of none. Worked in a machine shop since I was 8. Desgined embedded computers for a few years. Done lots in between. If there's anything I've learned with certainty, "Anyone who looks like they know what they're doing is putting on an act."
- Location: Texoma
Re: rudog#1
Thanx, YONA. That hits the nail on the head. I was trying to work it out with straight ends. The loop may solve the problem if my bender will do it (and the bender with his hand on the pump). I may have enough excess in the backbone to make the curve. Then splice to the seat post.
To get my 70* die to do the 90*plus will be a challenge.
The backbone being bent farther forward will require modifying the tank tunnel. I wanted to modify the tank as little as poss.
To get my 70* die to do the 90*plus will be a challenge.
The backbone being bent farther forward will require modifying the tank tunnel. I wanted to modify the tank as little as poss.
- rudog
- Conventioneer
- Posts: 257
- Joined: Tue Oct 25, 2011 2:03 pm
- SELF INTRODUCTION: Jack of all. Master of none. Worked in a machine shop since I was 8. Desgined embedded computers for a few years. Done lots in between. If there's anything I've learned with certainty, "Anyone who looks like they know what they're doing is putting on an act."
- Location: Texoma
Re: rudog#1
Here's some eye candy for those interested. Your seein' this only minutes after I did so I've not had time to digest it. The seat will naturally be farther back and down. Wishbones are @30* the lower rail @25*. Ive set the axle for 5" ground clearance. The wishbones will meet at the tank rear mount.
I will replace the front tank mount with hidden mounts. I was thinking of bending the lower lip of the tank into the tunnel. That's still a "might not until I do". I was thinking of closing the tunnel to fit the tube, but you can't see the tunnel, and I can hide shit in there.-
- Contributor
- Posts: 804
- Joined: Wed Oct 26, 2011 10:43 pm
- SELF INTRODUCTION: I was on the last board as bonustoolkit. I have changed that to my given name.
I started a project build there " File and Fit." I paln to continue that when I go back home in Dec. 2011. I first joined the board when Gary W had it in the year 2005. That was the time I really gained an interest in building chops. I have a long way to go, compared to some here.
Re: rudog#1

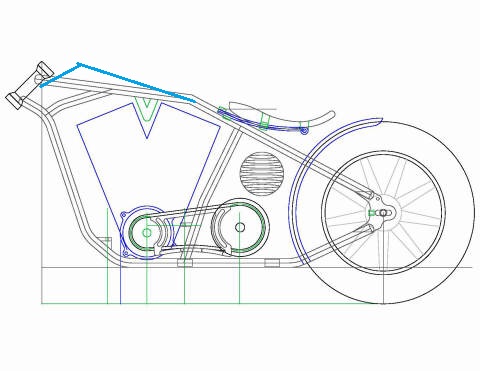

Trying to portray an idea here. Why not move the backbone bend further up toward the neck, trying to keep the backbone straight as regards the tank tunnel.
Last edited by hansgoudzwaard on Fri Mar 02, 2012 10:28 pm, edited 1 time in total.
- rudog
- Conventioneer
- Posts: 257
- Joined: Tue Oct 25, 2011 2:03 pm
- SELF INTRODUCTION: Jack of all. Master of none. Worked in a machine shop since I was 8. Desgined embedded computers for a few years. Done lots in between. If there's anything I've learned with certainty, "Anyone who looks like they know what they're doing is putting on an act."
- Location: Texoma
Re: rudog#1
I beat you by 3min, Hans.
The thought was long and low. The tank kinda threw me off track when I measured how long it was. It's 3 1/2 gal. The 1st draft had the backbone horizontal, and the tubes @65* rather than 78*...that's digger country.
What your showing there is basically a 1948 with a dropped neck. What YONA described is what I need to try and do. The only compromise is if the leaf spring sits on top of the frame or inside it.
I wish I wouldn't have mocked that up tonight. Now I'll never get to sleep.
The thought was long and low. The tank kinda threw me off track when I measured how long it was. It's 3 1/2 gal. The 1st draft had the backbone horizontal, and the tubes @65* rather than 78*...that's digger country.
What your showing there is basically a 1948 with a dropped neck. What YONA described is what I need to try and do. The only compromise is if the leaf spring sits on top of the frame or inside it.
I wish I wouldn't have mocked that up tonight. Now I'll never get to sleep.
- railroad bob
- Contributor
- Posts: 939
- Joined: Fri Nov 04, 2011 10:07 pm
- SELF INTRODUCTION: Hi Dan, thanks for your time and energy spent on this new board. I hope you will give me a waiver on the email account, I have used gmail so long I don't have a clue what my service provider account is.
I just returned home from a 2 week trip in New Mexico, have a few good pix, can't wait to share my off-highway traveling. Got to put 1400 miles on the scoot.
Best, Bob Davidson - Location: Alaska
Re: rudog#1
In the photo posted by Hans, I notice that the backbone and frame tube below it parallel the rocker covers of the engine, almost like a picture frame.
Hence the phrase, pretty as a picture...
Sorry, couldn't help myself.
Hence the phrase, pretty as a picture...
Sorry, couldn't help myself.
Alaska - Land of the Individual and Other Endangered Species
An Armed Society is a Polite Society,...
Politicians Prefer Unarmed Peasants
TANSTAAFL
An Armed Society is a Polite Society,...
Politicians Prefer Unarmed Peasants
TANSTAAFL
- yona
- Conventioneer
- Posts: 278
- Joined: Tue Oct 25, 2011 4:55 pm
- SELF INTRODUCTION: Automotive weldor and fabricator for 45 years, like to dip in to both pools............make hand-tooled leather covered seats and bags.................jack of all trades........................63 years old......live in Baja Georgia, on the coast...former military
- Location: Baja Georgia - St Johns River Inlet
- Contact:
Re: rudog#1

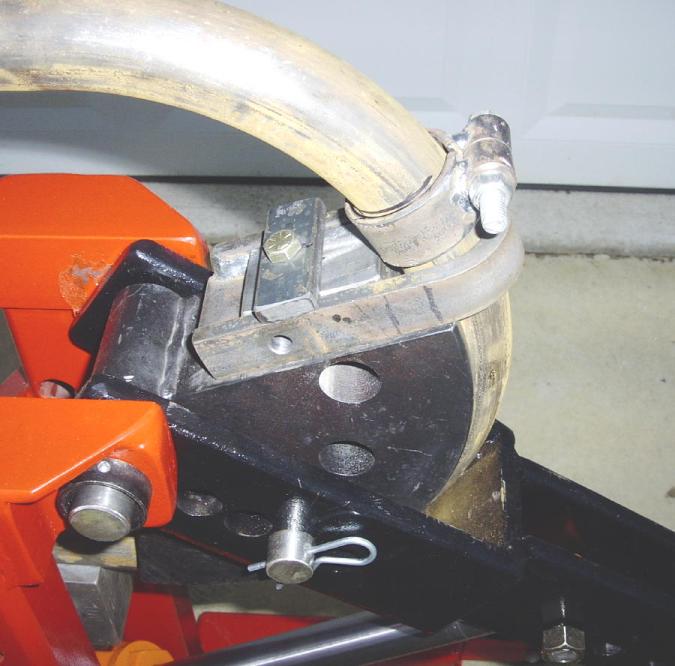

if you mod that 70 degree die to look like this , the over 90 bend is a piece of cake .....the smaller die are easier to remove from the bend ! of course you always can go to far... ; ) You need to put a little spug on the tube so the die will not bind..... but i know a machinist that can make you a smaller radius die , but there is no need, as that mod works........; ))))
- Attachments
-
- heavybender3(3).jpg (52.56 KiB) Viewed 16339 times
I.D.G.A.F.H.T.D.I.A.O.C.C.
- Maxthegardener
- Builder
- Posts: 384
- Joined: Tue Oct 25, 2011 11:28 am
- SELF INTRODUCTION: Name is Max living in scotland ,and building my first bike, Which is derived from a buellM2 Cyclone..Started with an engine and a Drop seat frame wich was made to my spec by a more experienced builder. would like to learn more about the skills and techniques required to build a frame so I value being a member here...Cheers Max
- Location: Angus, Scotland
Re: rudog#1
Hans shows a nice pic of Barefoot Gerrys frame, was trying to find the build log thats on his site....cant find it for some reason...I do remember though, on the overhang of the back bone past the seat post was cut horizontally to make a flat which would make an ideal mounting for the seat
- rudog
- Conventioneer
- Posts: 257
- Joined: Tue Oct 25, 2011 2:03 pm
- SELF INTRODUCTION: Jack of all. Master of none. Worked in a machine shop since I was 8. Desgined embedded computers for a few years. Done lots in between. If there's anything I've learned with certainty, "Anyone who looks like they know what they're doing is putting on an act."
- Location: Texoma
Re: rudog#1
I'm gonna live with this for a few days. I got freebee's and payme's to do and this is a perfect time to stop. I figured out how to drop the leaf between the wishbones without much problem from the seat post.
What if I rotated the wishbones around the backbone to create a v-groove for the spring perch. I've never seen it done that way. It would look from the side like the drawing Hans did for the backbone. I would only need 1/2" +/-.
What if I rotated the wishbones around the backbone to create a v-groove for the spring perch. I've never seen it done that way. It would look from the side like the drawing Hans did for the backbone. I would only need 1/2" +/-.
